Flashforge WaxJet 530

The WJ530 is the only new-generation triple printhead wax 3D printer currently available on the global market. Designed for high-speed, simultaneous three-head printing, it significantly boosts production efficiency. Each unit delivers an average monthly wax output of up to 12 kg, setting a new benchmark for industrial-grade jewelry pattern production

Get a quotationRequest for demoBook a demoBuy now

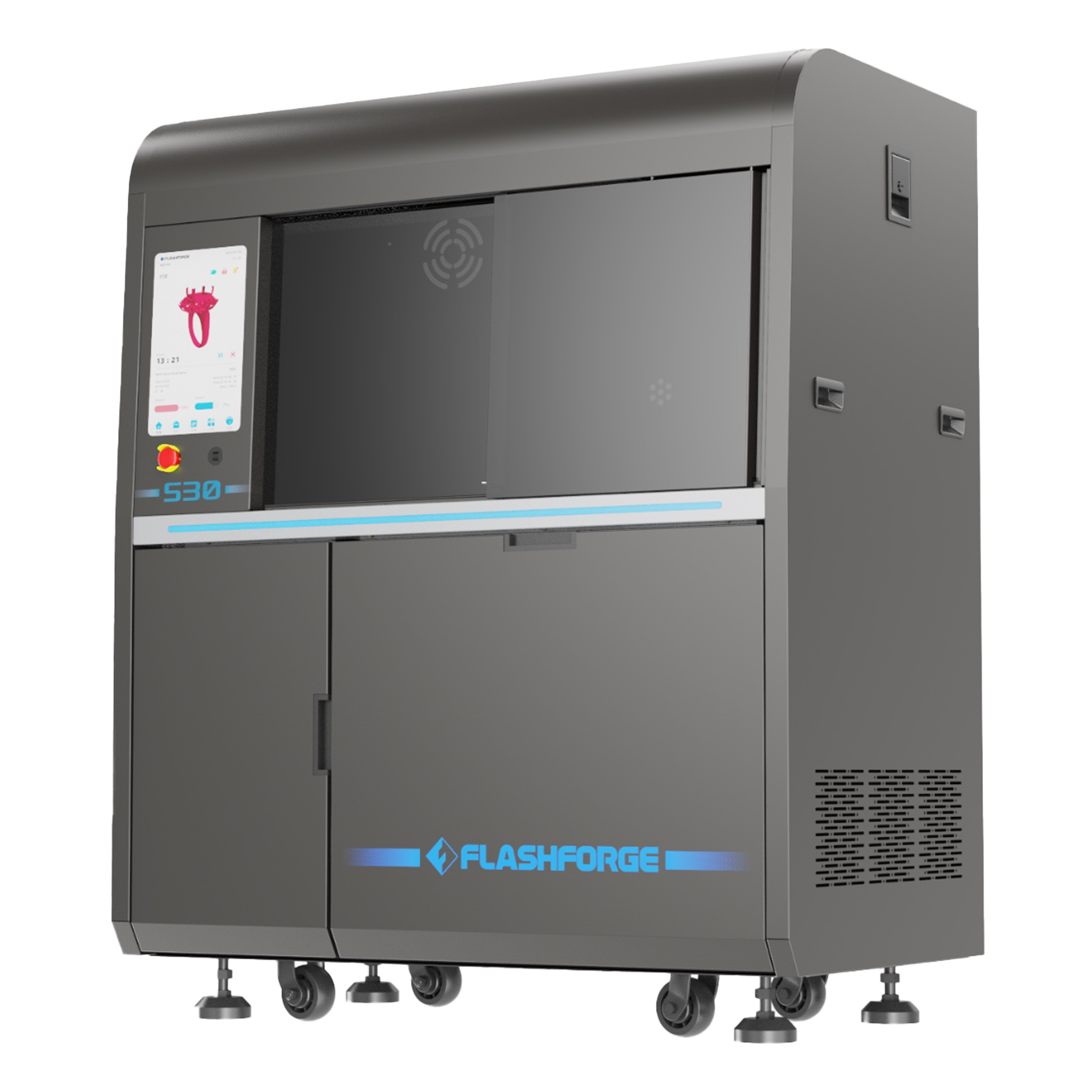

WaxJet 530 3D Printer
Back

Stable & Durable

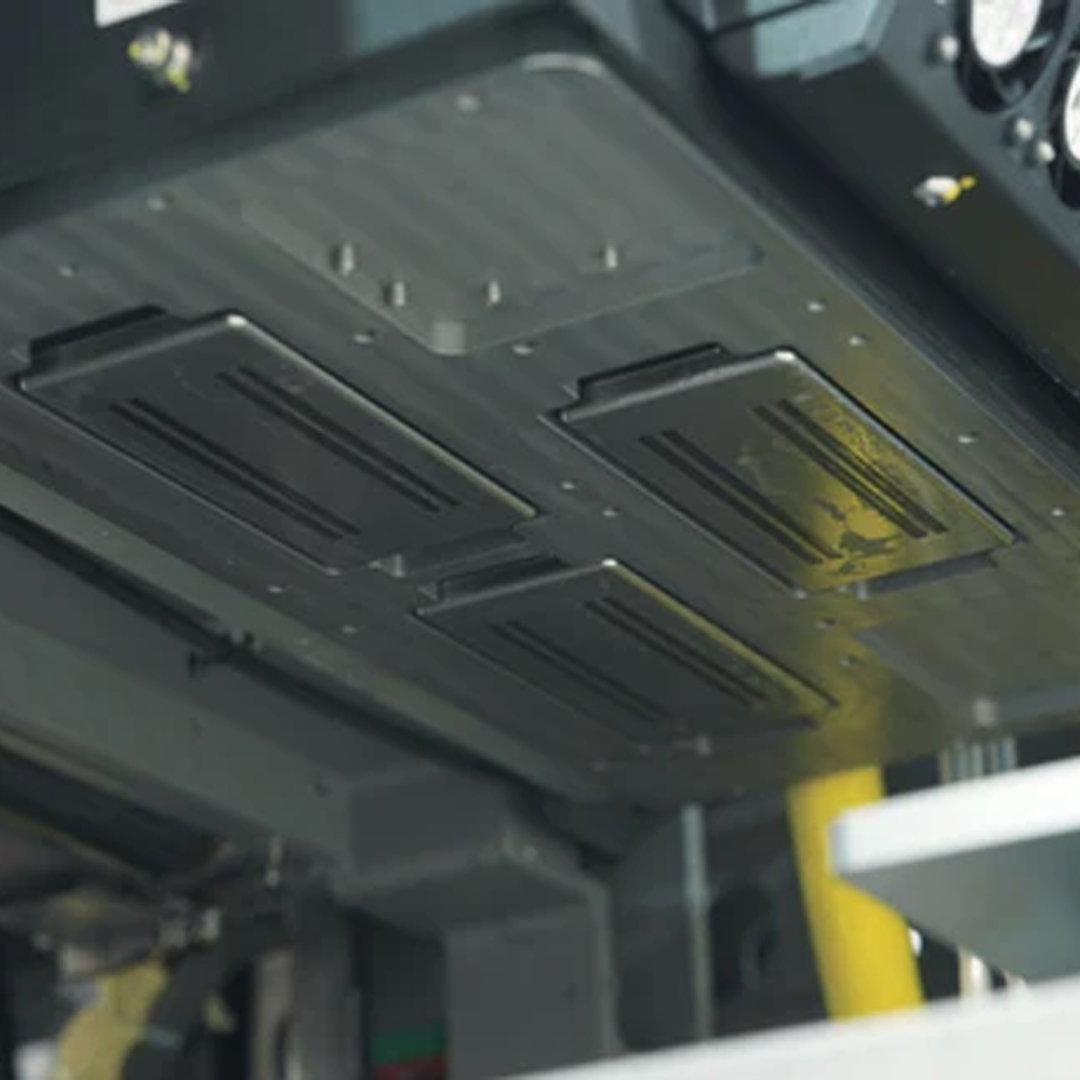

Patented self-developed wax circulation control system, 365*24-hour high-intensity testing, more durable printhead.

‍

High Wax Material Utilization Rate

Stable output with a wax material utilization rate of 58%-60%, advanced technology and reliable printing improve utilization, reduce waste, and maximize production efficiency.

‍

Intelligent Monitoring

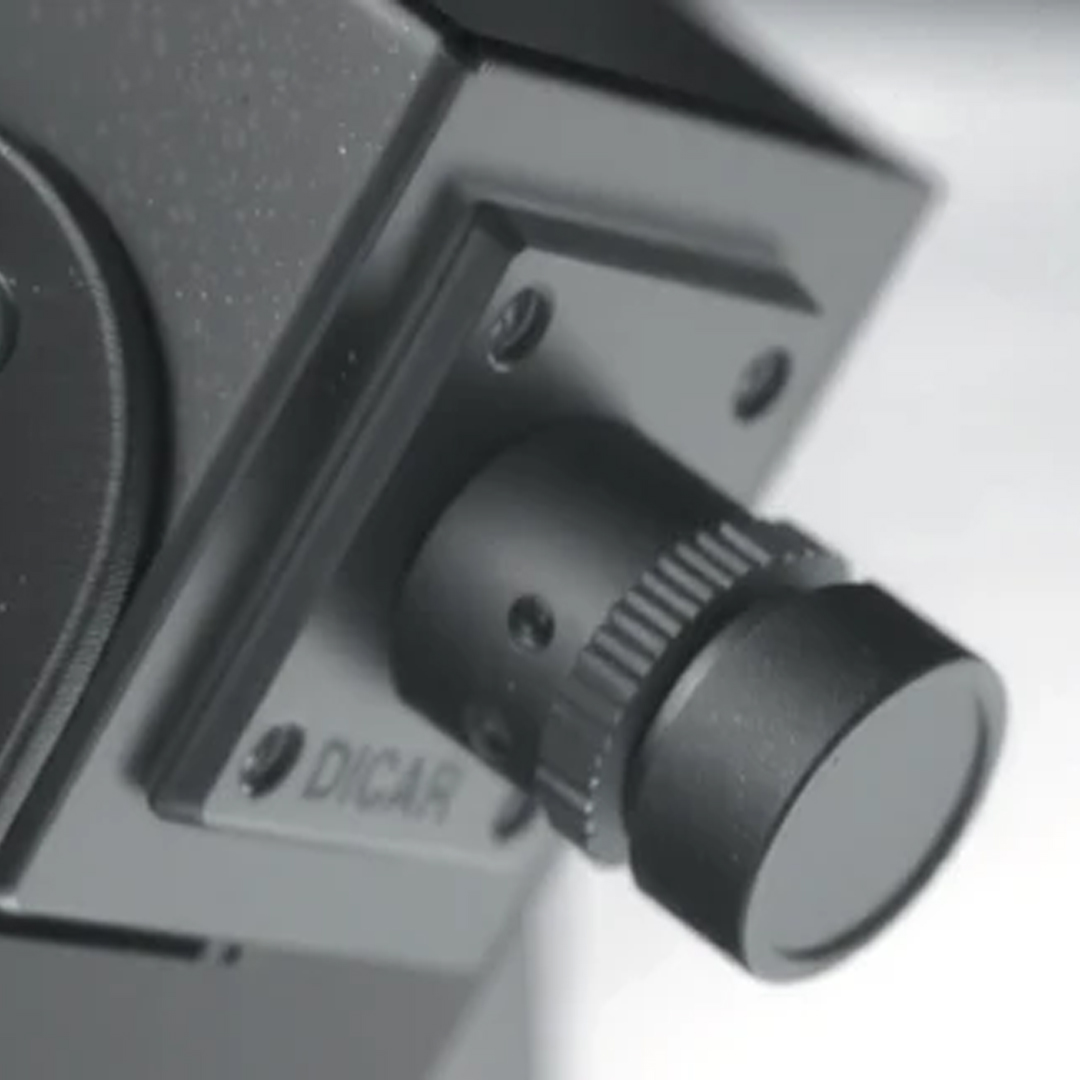

Wi-Fi connectivity & 2K HD camera, monitor printing in real time for worry-free production

‍

Process

Hard Gold Plating + Enameling Technique Weight: 0.95 Material Composition: 0.95g GOLD Gold Usage in Traditional Process: 5g Wax pattern weight: 0.1g Printing time: 20min Layer thickness: 0.015

Technical Specification

Flashforge WaxJet 530

Download brochure >

Printing Precision(XHD): 2900X2900X1700 DPI

Layer Thickness: 15μm

Printing Material: Red Wax + White Wax

Layer Printing Time: 8.2-8.5seconds

Wax Material Utilization Rate: 58%-60%

‍

‍

Build volume:
289*208*150mm
Layer height:
1530*900*1837mm
No items found.

Advantages Over Similar Technologies

  • 2900 × 2900 × 1700 dpi ultra-high resolution
  • Honeycomb support for stable, material-efficient builds

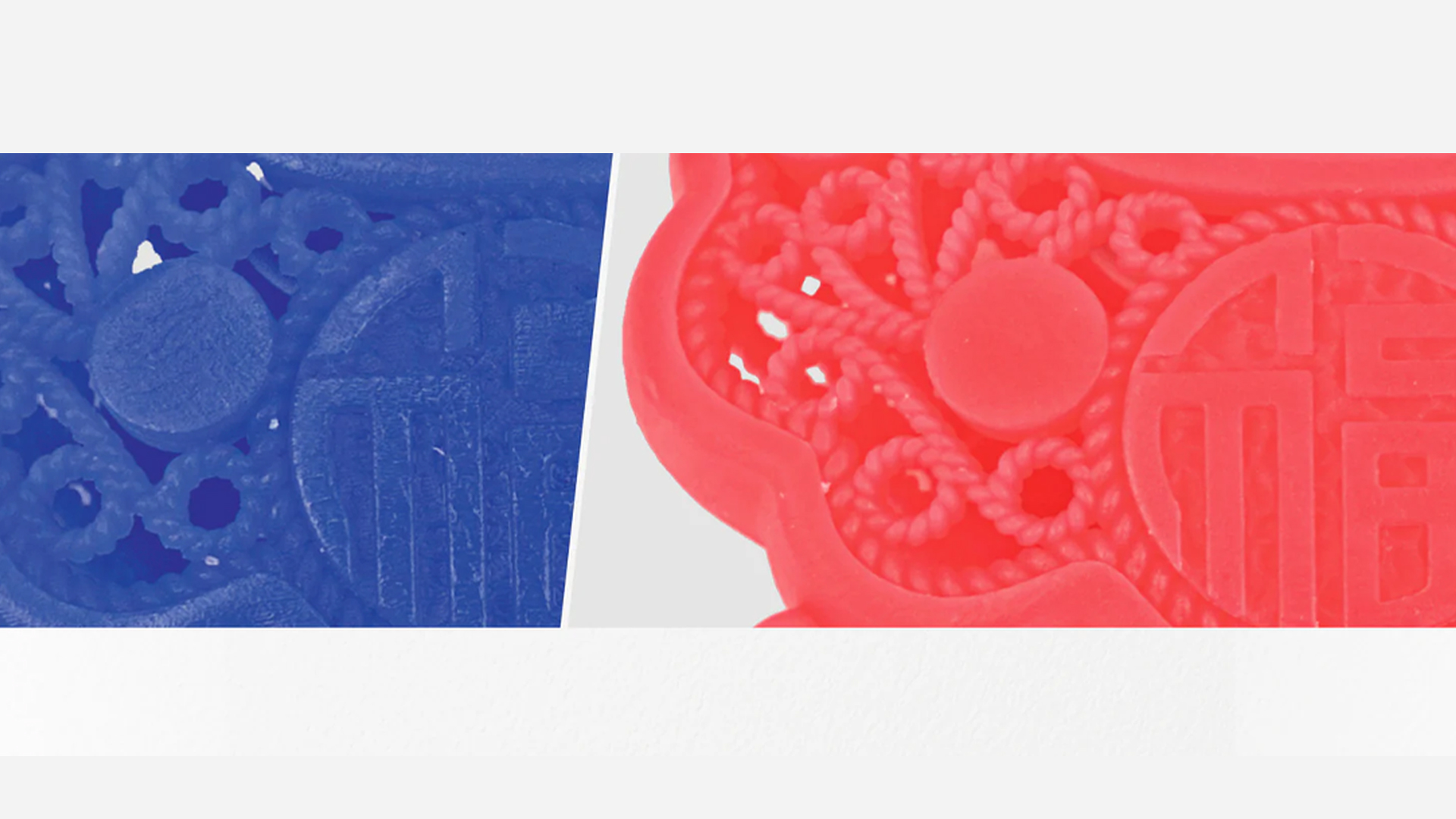

  • Flexible wax material for smooth surfaces and easy cleanup
  • Fewer moving parts reduce maintenance and downtime
  • Windows-based remote access for easy control
  • Lower-cost build & support materials for efficient operation
